Brazed Plate Heat Exchanger
OEM sourcing, model identification and application support
LGN BPHE Portfolio
Our brazed plate heat exchanger portfolio is structured around OEM product selection, model identification, replacement support and technical sourcing. The following sections cover BPHE applications, working principles, OEM model references and Alfa Laval part numbers while preserving the original identification data required for accurate procurement.

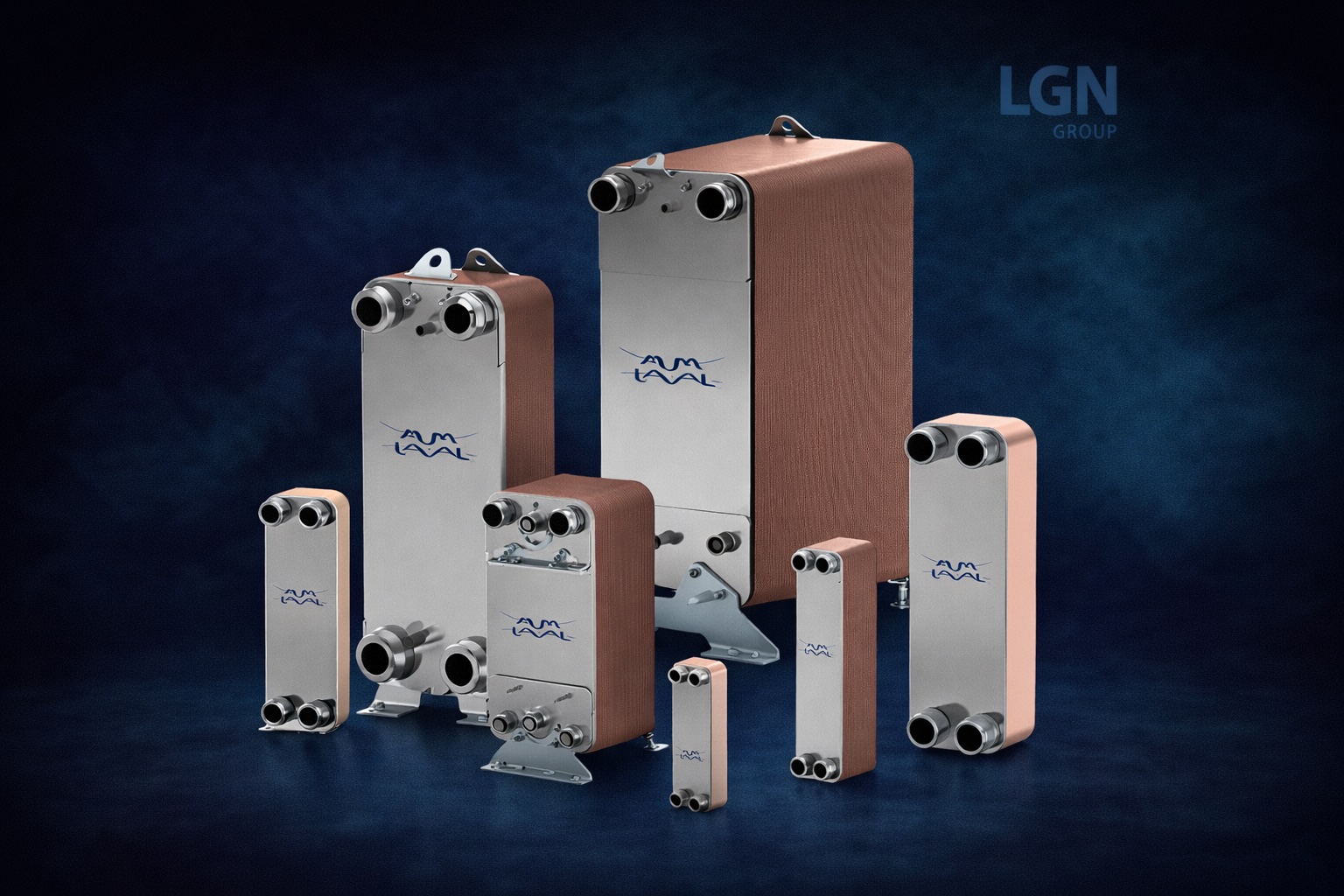

Compact Heat Transfer Solutions for Multiple Process Duties
LGN Group supports brazed plate heat exchanger requirements across Alfa Laval and Kelvion product families, with a focus on OEM model identification, replacement matching and application-oriented selection. BPHE technology is widely used where compact installation, efficient thermal transfer and dependable operation are important.
Single-Phase Heat Transfer
Suitable for liquid-to-liquid heating and cooling duties in compact process and utility systems.
Evaporation Duties
BPHE designs can be selected for refrigeration and process duties where controlled evaporation is required.
Condensing Duties
Compact plate construction supports heat rejection and condensing applications in refrigeration and thermal systems.
Heat Recovery
Recovered thermal energy can be transferred between process or utility streams to improve overall system efficiency.
How a Brazed Plate Heat Exchanger Works

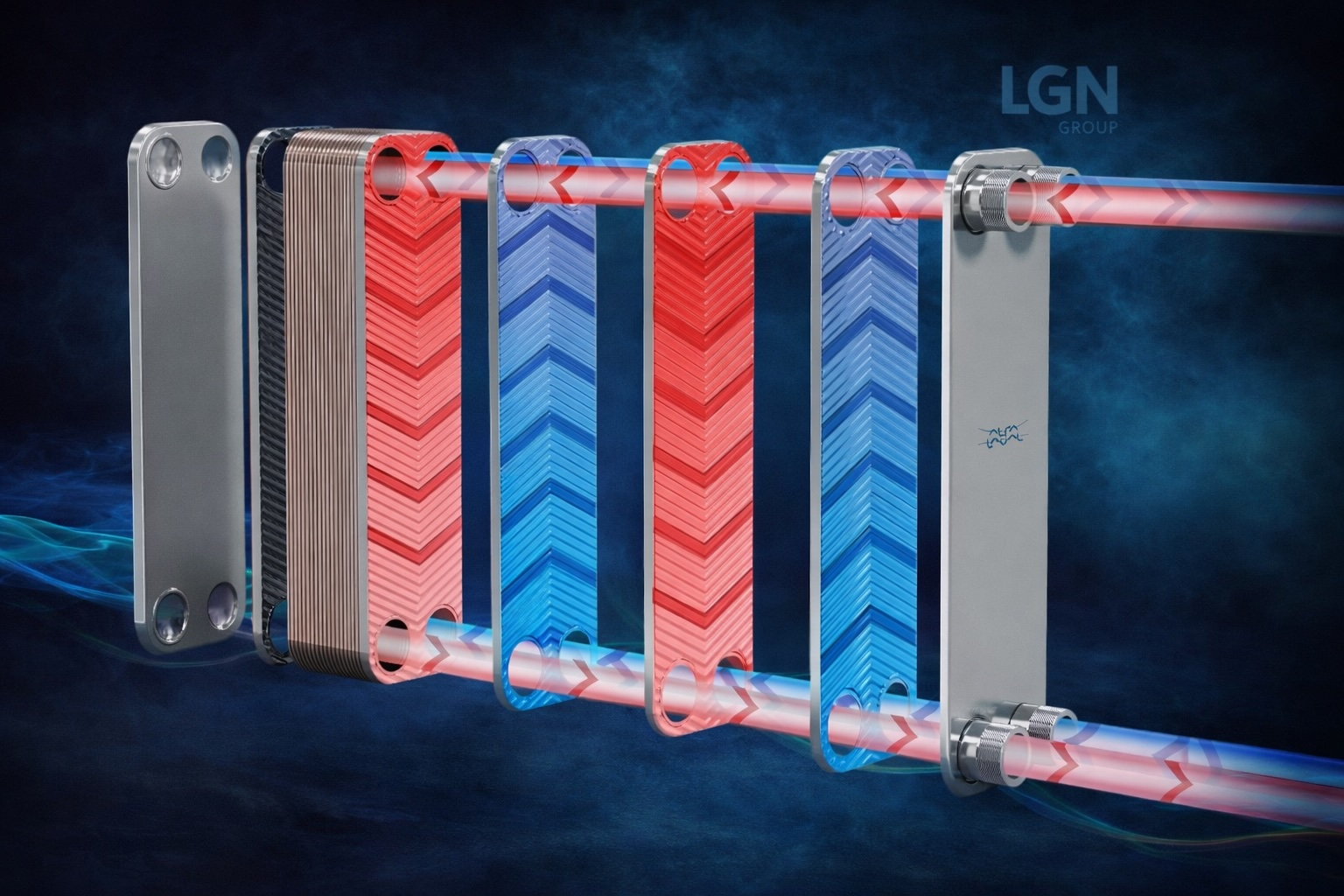

A brazed plate heat exchanger consists of a stack of formed metal plates joined into a compact heat-transfer block. The plate pattern creates separate alternating channels for the hot and cold media. Heat passes through the plate walls from one circuit to the other while the fluids remain physically separated.

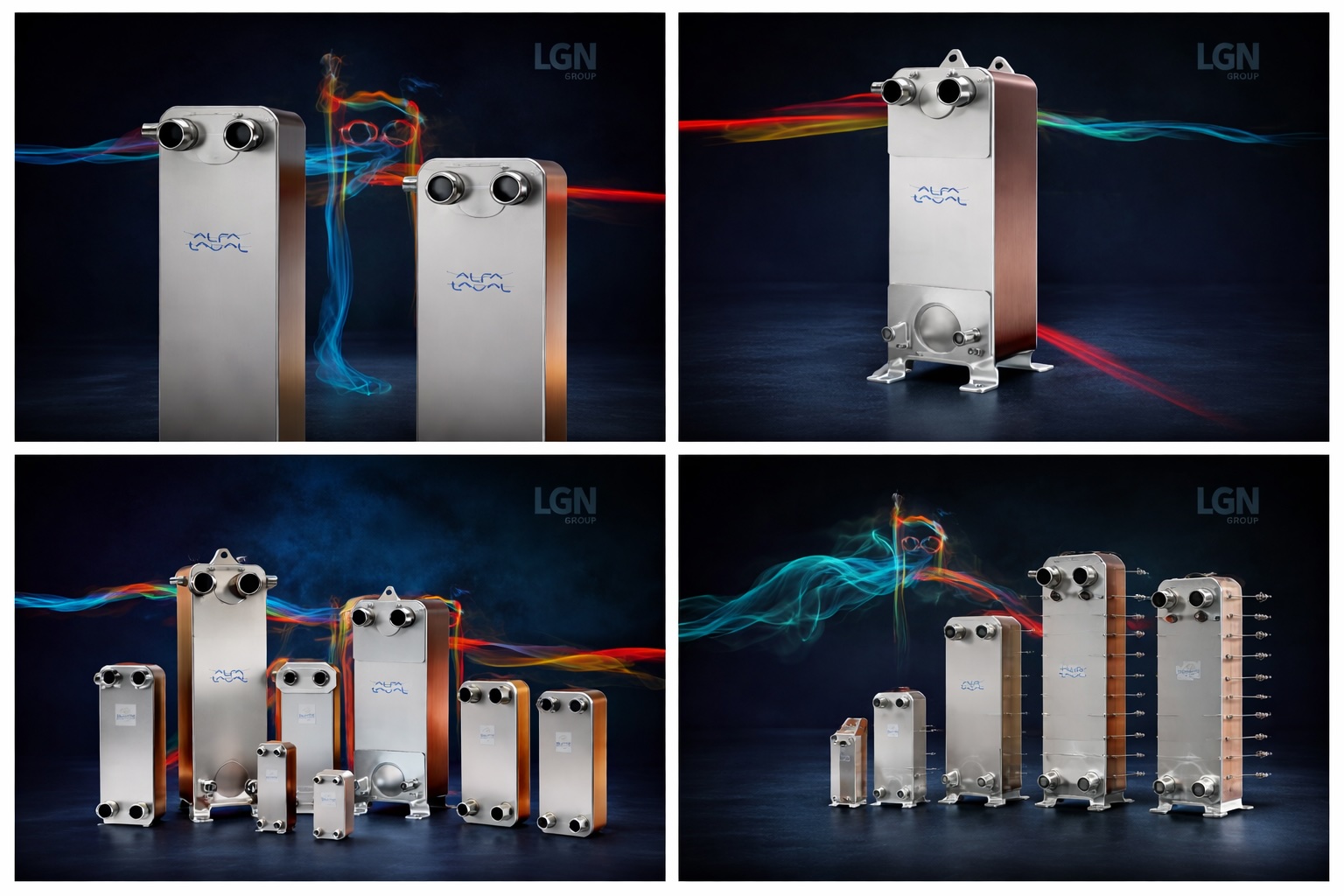

Alfa Laval BPHE Models & Part Numbers
This reference section lists Alfa Laval brazed plate heat exchanger model numbers, OEM part numbers and dimensions currently recorded by LGN Group for CB30, CB60, CB110, CB112 and CB200 units.
The tables are intended to support model identification, replacement sourcing and RFQ preparation. For procurement requests, please provide the complete model designation and OEM part number whenever available.
CB30 Series
Alfa Laval CB30 H, M and L model references with preserved OEM part numbers and recorded dimensions.
| OEM Part Number | Model | Dimensions (mm) |
|---|---|---|
| 32870 8336 1 | CB30-10H | 113×313×36 |
| 32870 8328 7 | CB30-18H | 113×313×54 |
| 32870 8328 6 | CB30-24H | 113×313×68 |
| 32870 8336 3 | CB30-34H | 113×313×91 |
| 32870 8336 4 | CB30-50H | 113×313×128 |
| 32870 8336 5 | CB30-70H | 113×313×175 |
| 32870 8336 6 | CB30-100H | 113×313×244 |
| 32870 8336 7 | CB30-120H | 113×313×290 |
| 32870 8336 8 | CB30-10M | 113×313×36 |
| 32870 8336 9 | CB30-18M | 113×313×54 |
| 32870 8337 0 | CB30-24M | 113×313×68 |
| 32870 8337 1 | CB30-34M | 113×313×91 |
| 32870 8337 2 | CB30-50M | 113×313×128 |
| 32870 8337 3 | CB30-70M | 113×313×175 |
| 32870 8337 4 | CB30-100M | 113×313×244 |
| 32870 8337 7 | CB30-10L | 113×313×36 |
| 32870 8337 8 | CB30-18L | 113×313×54 |
| 32870 8337 9 | CB30-24L | 113×313×68 |
| 32870 8338 0 | CB30-34L | 113×313×91.5 |
| 32870 8338 1 | CB30-50L | 113×313×128.5 |
| 32870 8338 3 | CB30-100L | 113×313×244 |
CB60 Series
Alfa Laval CB60 H, M and L model references with preserved OEM part numbers and recorded dimensions.
| OEM Part Number | Model | Dimensions (mm) |
|---|---|---|
| 32870 7964 1 | CB60-10H | 113×527×36 |
| 32870 7964 2 | CB60-20H | 113×527×59 |
| 32870 7964 3 | CB60-30H | 113×527×83 |
| 32870 7964 4 | CB60-40H | 113×527×106 |
| 32870 7964 5 | CB60-50H | 113×527×129 |
| 32870 7964 6 | CB60-60H | 113×527×152 |
| 32870 7964 7 | CB60-80H | 113×527×199 |
| 32870 7964 8 | CB60-100H | 113×527×245 |
| 32871 0147 7 | CB60-20M | 113×527×59 |
| 32871 0147 8 | CB60-30M | 113×527×83 |
| 32871 0147 9 | CB60-40M | 113×527×106 |
| 32871 0148 0 | CB60-50M | 113×527×129 |
| 32871 0148 1 | CB60-60M | 113×527×152 |
| 32871 0148 2 | CB60-80M | 113×527×199 |
| 32871 0148 3 | CB60-100M | 113×527×245 |
| 32871 0148 6 | CB60-20L | 113×527×59 |
| 32871 0148 7 | CB60-30L | 113×527×83 |
| 32871 0148 8 | CB60-40L | 113×527×106 |
| 32871 0148 9 | CB60-50L | 113×527×129 |
| 32871 0149 0 | CB60-60L | 113×527×152 |
| 32871 0149 1 | CB60-80L | 113×527×199 |
| 32871 0149 2 | CB60-100L | 113×527×245 |
CB110 / CB112 / CB200 Series
Alfa Laval CB110, CB112 and CB200 references with preserved OEM part numbers and recorded dimensions.
| OEM Part Number | Model | Dimensions (mm) |
|---|---|---|
| 32871 0155 3 | CB110-16H | 191×616×56 |
| 32871 0155 4 | CB110-20H | 191×616×66 |
| 32871 0155 5 | CB110-24H | 191×616×76 |
| 32871 0155 6 | CB110-30H | 191×616×92 |
| 32871 0155 7 | CB110-38H | 191×616×112 |
| 32871 0155 8 | CB110-46H | 191×616×133 |
| 32871 0155 9 | CB110-54H | 191×616×153 |
| 32871 0156 0 | CB110-64H | 191×616×178 |
| 32871 0156 1 | CB110-76H | 191×616×210 |
| 32871 0156 2 | CB110-90H | 191×616×245 |
| 32871 0156 3 | CB110-120H | 191×616×322 |
| 32871 0158 7 | CB110-16M | 191×616×56 |
| 32871 0158 8 | CB110-20M | 191×616×66 |
| 32871 0158 9 | CB110-24M | 191×616×76 |
| 32871 0159 0 | CB110-30M | 191×616×92 |
| 32871 0159 1 | CB110-38M | 191×616×112 |
| 32871 0159 2 | CB110-46M | 191×616×133 |
| 32871 0159 3 | CB110-54M | 191×616×153 |
| 32871 0159 4 | CB110-64M | 191×616×178 |
| 32871 0159 5 | CB110-76M | 191×616×210 |
| 32871 0159 6 | CB110-90M | 191×616×245 |
| 32871 0159 8 | CB110-16L | 191×616×56 |
| 32871 0159 9 | CB110-20L | 191×616×66 |
| 32871 0160 0 | CB110-24L | 191×616×76 |
| 32871 0160 1 | CB110-30L | 191×616×92 |
| 32871 0160 2 | CB110-38L | 191×616×112 |
| 32871 0160 3 | CB110-46L | 191×616×133 |
| 32871 0160 4 | CB110-54L | 191×616×153 |
| 32871 0160 5 | CB110-64L | 191×616×178 |
| 32871 1917 8 | CB112-64L | 191×616×149 |
| 32871 2377 7 | CB112-120H | 191×616×150 |
| 32870 0076 4 | CB200-100M | — |
Need help identifying an Alfa Laval brazed plate heat exchanger?
LGN Group supports OEM BPHE replacement inquiries using available model numbers, Alfa Laval part numbers, equipment nameplates, drawings and datasheets. When sending an RFQ, include the exact reference shown on the installed heat exchanger so the required unit can be identified as accurately as possible.

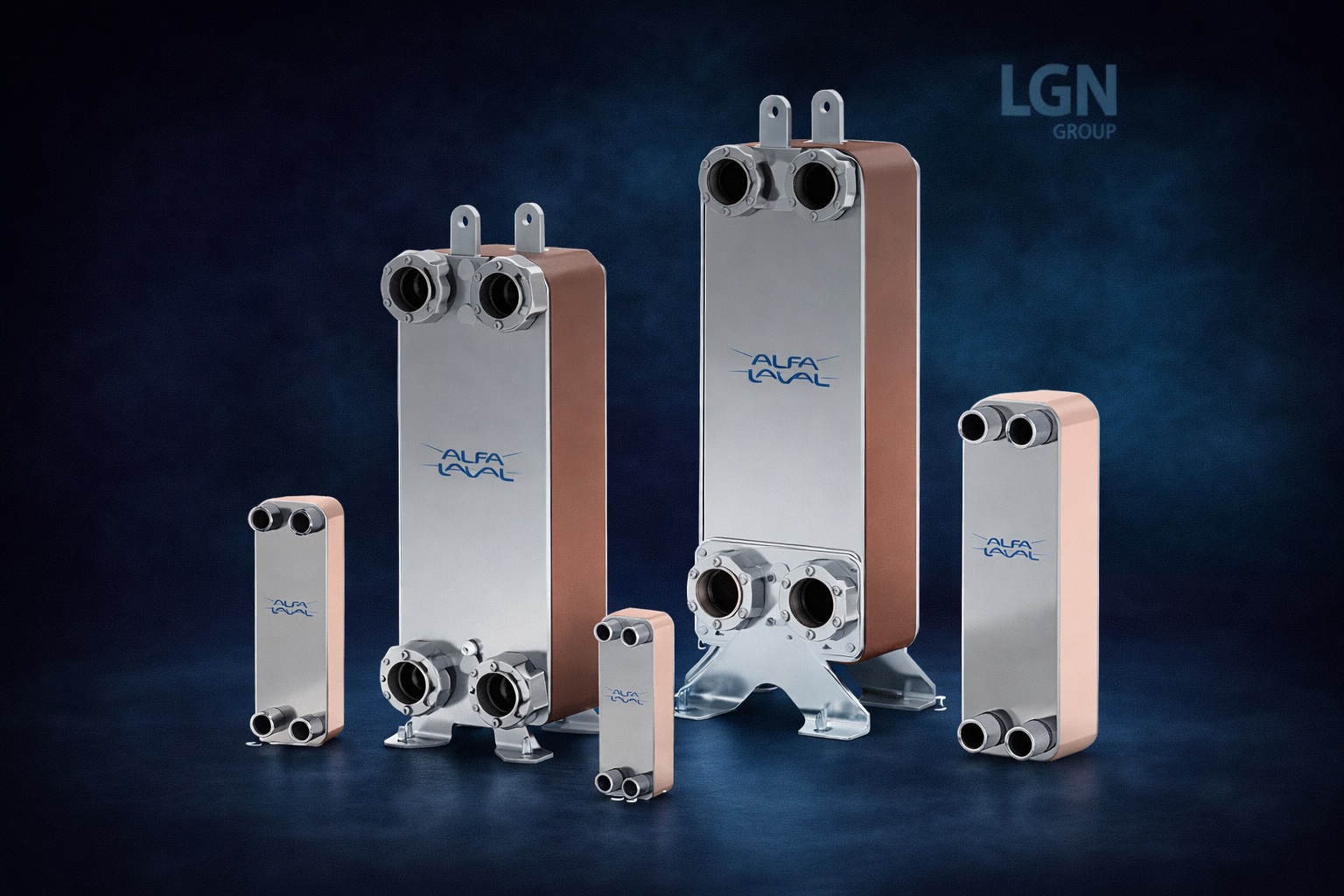

BPHE Solutions Across Industrial & Process Applications
Brazed plate heat exchangers are used across a wide range of thermal duties where compact construction, efficient heat transfer and reliable OEM sourcing are important. LGN Group supports Alfa Laval and Kelvion BPHE inquiries for both new projects and replacement requirements.
HVAC
Compact heat-transfer solutions for heating, cooling and building-services systems.
Refrigeration
BPHE selection support for refrigeration and temperature-control applications.
Heat Recovery
Efficient transfer of recoverable heat between suitable process and utility streams.
Oil Cooling
Thermal management solutions for compatible oil-cooling and equipment-support duties.
Food
Heat-transfer applications within food-processing and associated utility systems.
Dairy
BPHE support for dairy processing, utility and temperature-control requirements.
Pharmaceutical
Compact thermal solutions for suitable pharmaceutical and process-support duties.
Industrial Processing
OEM replacement and project support for a broad range of industrial heat-transfer duties.
Information Needed for BPHE Selection
Correct heat-exchanger selection depends on the actual operating duty. Providing complete process data helps identify a suitable Alfa Laval or Kelvion BPHE and avoids unnecessary assumptions during technical evaluation.
Technical Sourcing Support for BPHE Projects
From model identification to replacement sourcing, LGN Group helps customers prepare accurate BPHE inquiries and connect project data with suitable OEM references.
Send Us Your BPHE Requirement
For Alfa Laval or Kelvion brazed plate heat exchanger inquiries, send the available model, OEM reference and operating data. LGN Group can support new-project selection, replacement identification and technical sourcing.
Recommended RFQ Information
Include as much of the following information as available.
